Axle Stands

British-made axle stands for light to heavy commercial vehicles. Made in Sheffield, every Melco stand uses the load-pin safety principle — the pin bends as a visible overload warning rather than failing without notice. From 3-tonne light-commercial stands to 16-tonne low-entry stands for plant and off-road tyre work, there’s a Melco stand for the load and the working height you need.

Please note: we have discontinued our car / DIY axle stand range (the former AS/5 and AS/10). Our range now starts at the 3-tonne AS/20, built for professional and commercial use. Genuine replacement pins, chains and crutches for older stands remain available.

Capacities are the Safe Working Load (SWL) per stand — always used in matched pairs. 1 tonne = 1,000 kg.

The range at a glance

Sorted by capacity, then working height. Not sure which you need? See our Which Axle Stand Do I Need? guide.

Model Capacity — single / pair Min height Max height Crutch Wheels Height class
AS/20 3 t / 6 t
3,000 / 6,000 kg 		300 mm 500 mm 88 mm V — Low entry
AS/20A 3 t / 6 t
3,000 / 6,000 kg 		300 mm 500 mm 88–95 mm flat — Low entry
AS/30 4 t / 8 t
4,000 / 8,000 kg 		500 mm 750 mm 88 mm V — Medium
AS/30A 4 t / 8 t
4,000 / 8,000 kg 		500 mm 750 mm 88–95 mm flat — Medium
AS/40/S 6 t / 12 t
6,000 / 12,000 kg 		300 mm 500 mm 144 mm — Low entry
AS/40 6 t / 12 t
6,000 / 12,000 kg 		540 mm 1000 mm 144 mm Feet opt. Medium
AS/40/HD 8 t / 16 t
8,000 / 16,000 kg 		540 mm 1000 mm 144 mm Feet opt. Medium
AS/45 12 t / 24 t
12,000 / 24,000 kg 		300 mm 500 mm 144 mm — Low entry
AS/45/HD 16 t / 32 t
16,000 / 32,000 kg 		300 mm 500 mm 144 mm — Low entry
AS/50 6 t / 12 t
6,000 / 12,000 kg 		700 mm 1250 mm 144 mm Yes High lift
AS/50/HD 7.5 t / 15 t
7,500 / 15,000 kg 		700 mm 1250 mm 144 mm Yes High lift

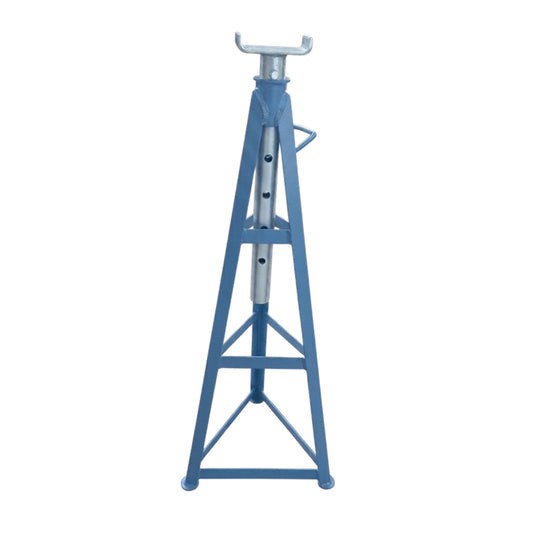

AS/60 6 t / 12 t
6,000 / 12,000 kg 		1450 mm 1750 mm 144 mm Yes High lift
AS/60/HD 7.5 t / 15 t
7,500 / 15,000 kg 		1450 mm 1750 mm 144 mm Yes High lift

Feet: AS/40 to AS/60 available with disc feet for added stability (extra cost). Wheels: AS/50 and AS/60 available with wheels for easier workshop handling. AS/50/HD price on application.
