Single or pair? Axle stands must be used in matched pairs. Choose Single for one stand or Pair for two — the Pair price is for both stands.

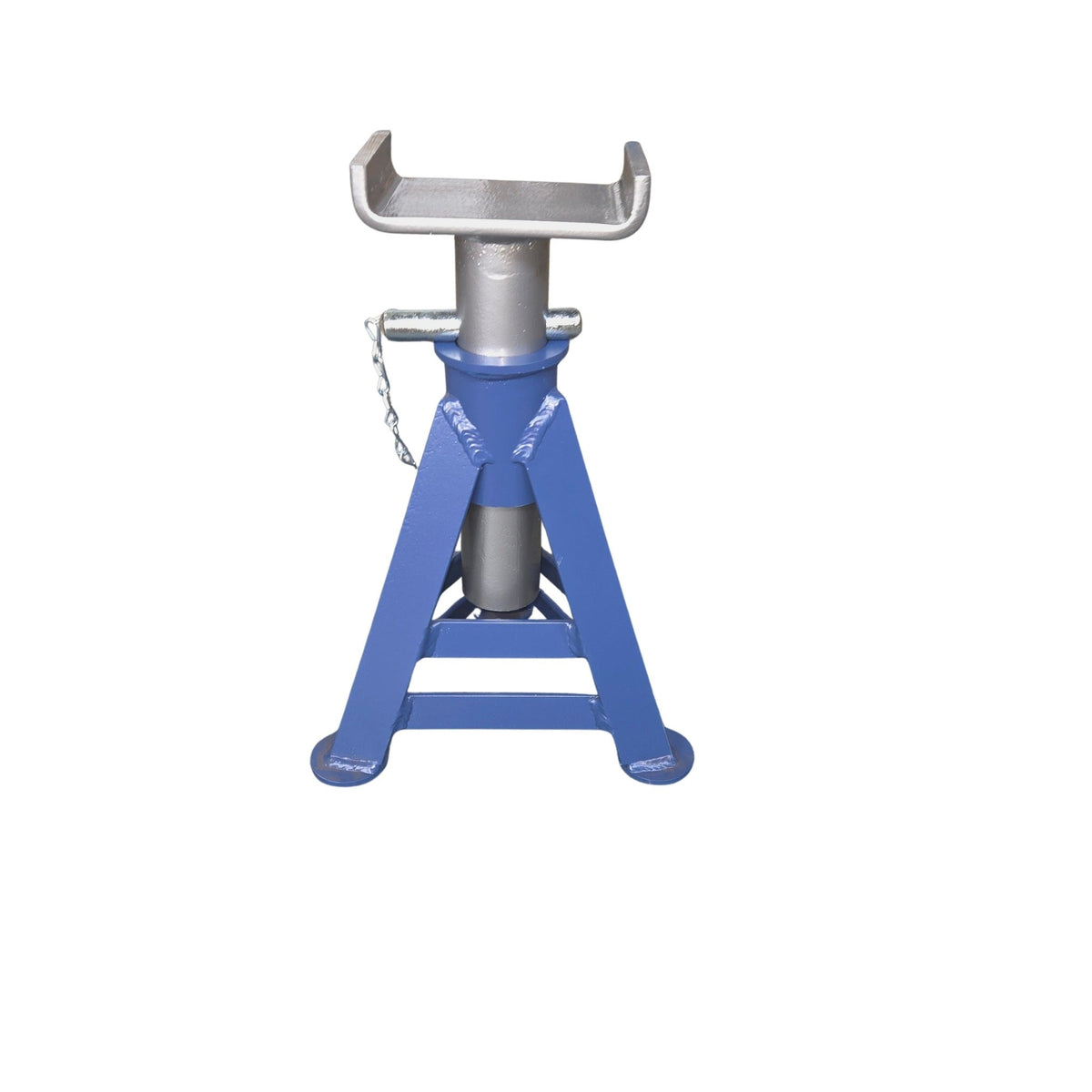

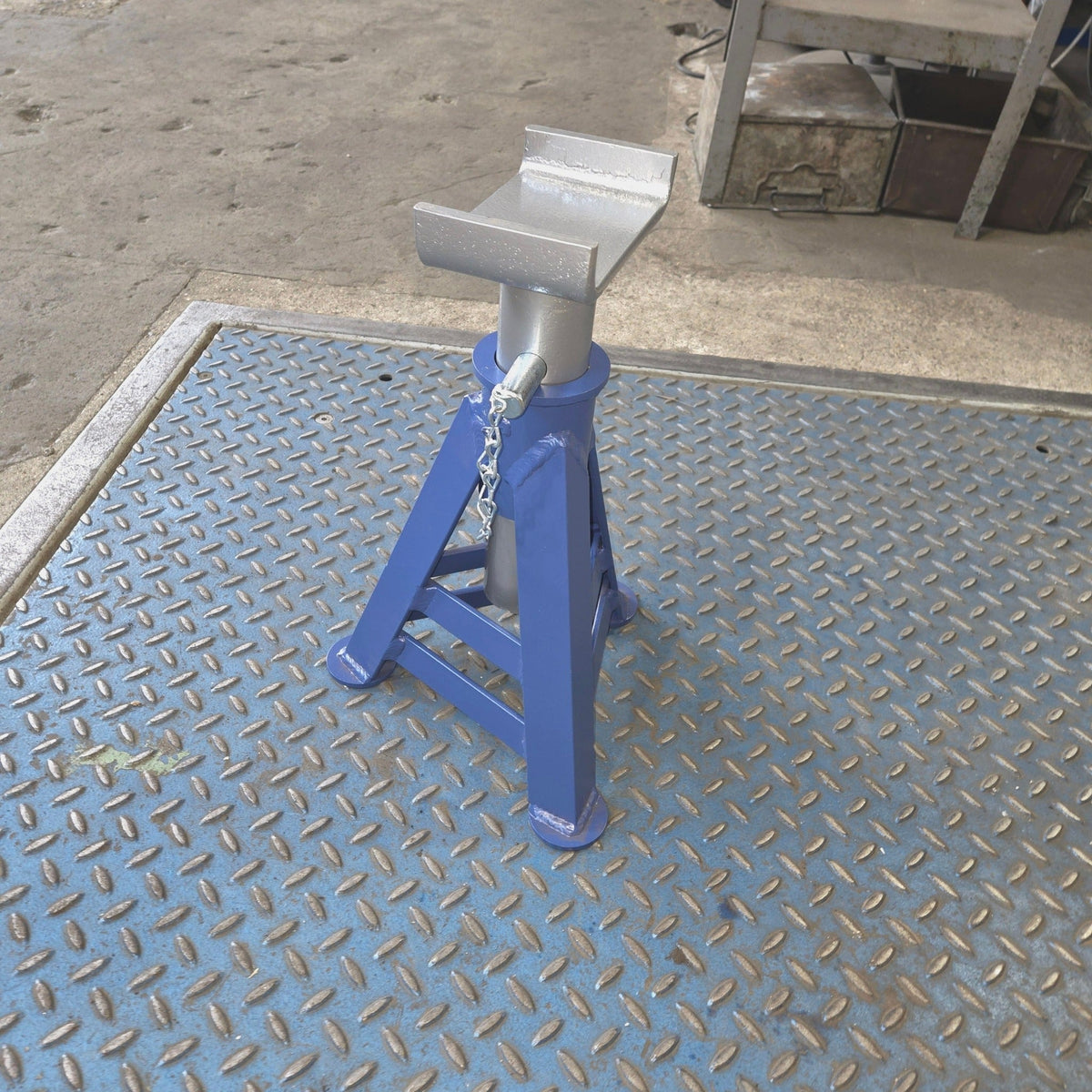

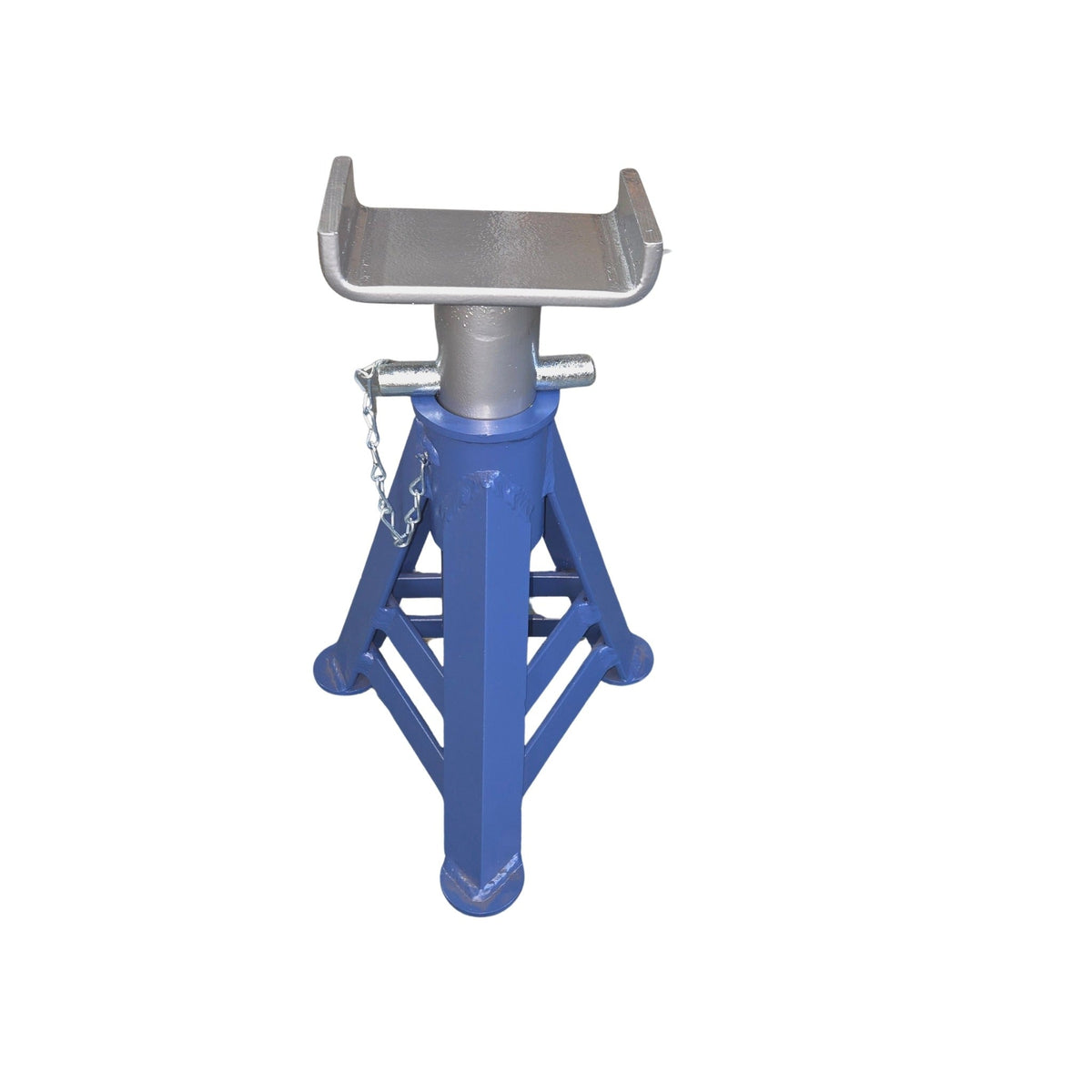

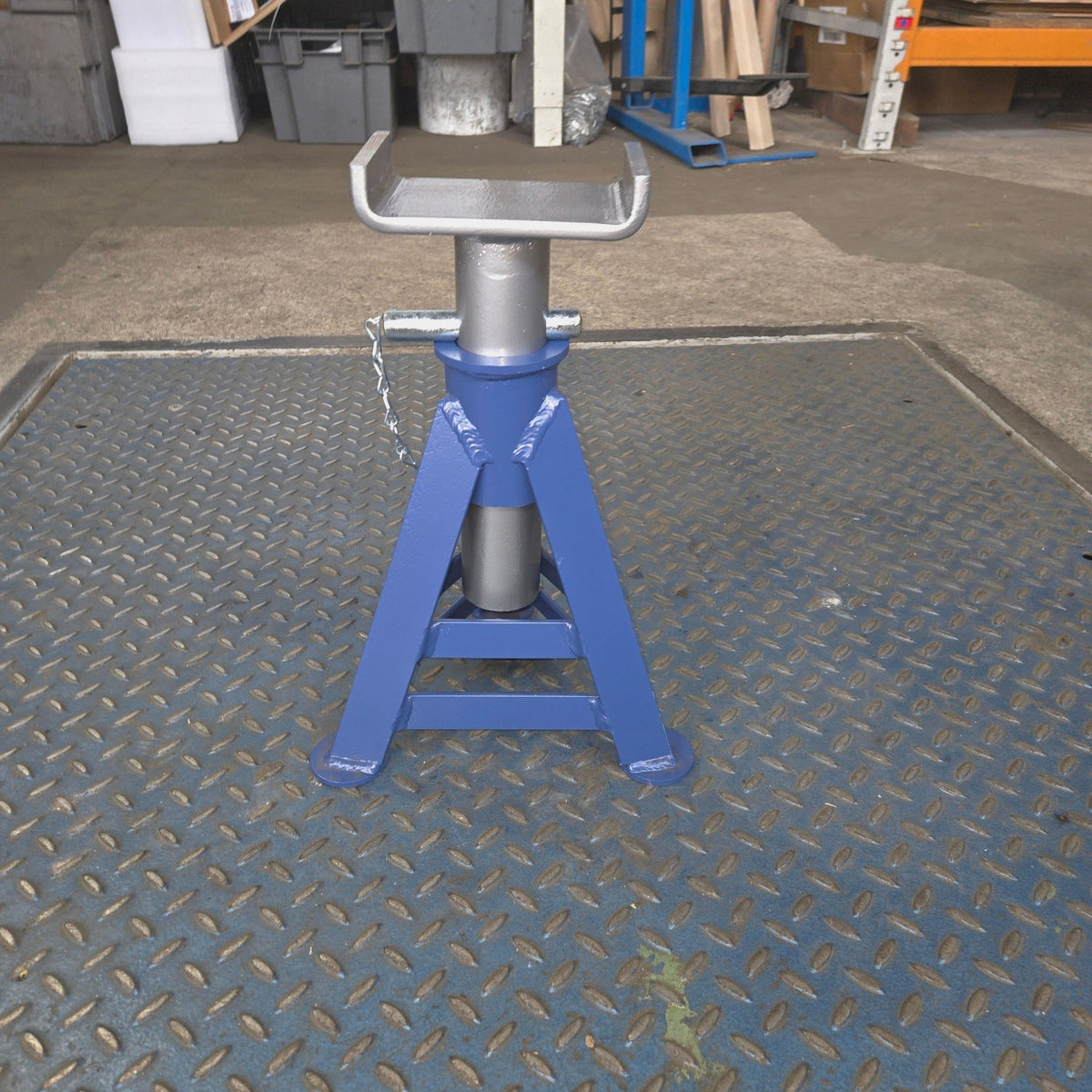

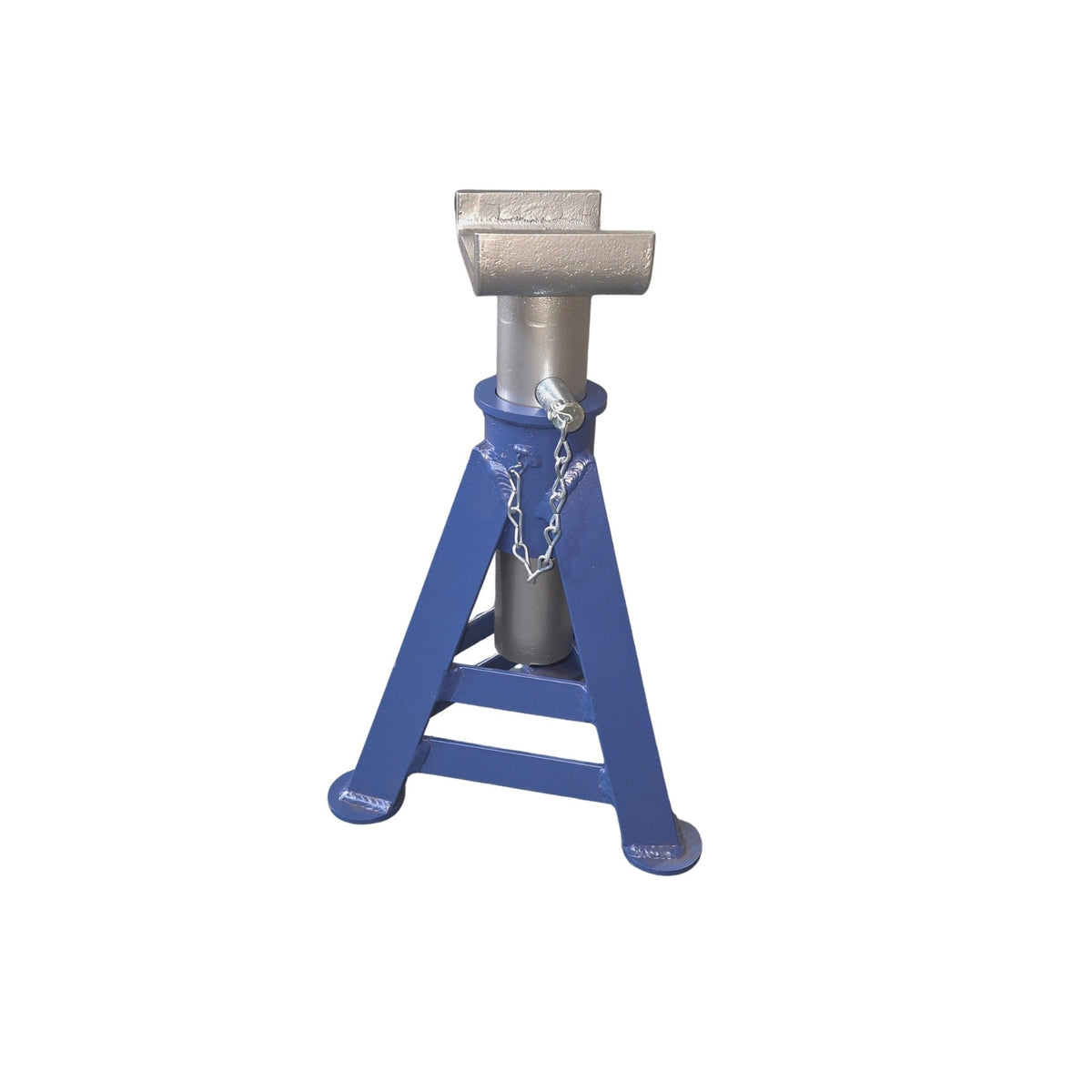

A low-entry 12-tonne axle stand with an extra leg stay and solid bar centre column, designed for heavy applications requiring a low working height. Working height 300–500mm (12–20 in).
Before lifting: position the vehicle on firm, level ground, apply the parking brake, select Park or a suitable gear as appropriate, and chock the wheels that will remain on the ground. Raise the vehicle using suitable lifting equipment. Place matched stands only at the vehicle manufacturer's approved support points, set each genuine load pin fully through the required hole, and lower the vehicle carefully onto the stands. Keep the load vertical and centred on each crutch. Never work beneath a vehicle supported only by a jack.
Inspect before every use: check the correct Melco pin is fitted and straight, the crutch is true and not spread, holes are not elongated, the centre column and legs are not bent and welds are sound. Never substitute the load pin. Do not exceed the marked SWL. Replace worn or damaged pins, chains or crutches with the correct Melco spare. Maintain a regular inspection regime appropriate to the use and working environment.
Key features
Peg-and-hole design
Load pin provides a visible indication of overload through deformation
Proof tested to 1.5× safe working load
Genuine replacement parts available
Made in Sheffield
Applications
Supporting a correctly raised heavy vehicle or equipment during inspection, maintenance and repair. Use only at approved support points and in accordance with the operating instructions.
Specifications
Model Code
AS/45
Stock Code
16246 (single) / 16247 (pair)
Length
500 mm
Working Height
300-500 mm (12-20 in)
Material
Steel (angle-iron legs, solid centre column, load-bearing pin)
