Melco
Melco TTL/4 Tubeless Tyre Lever
Melco TTL/4 Tubeless Tyre Lever
Online ordering temporarily unavailable
We’re finalising our delivery options. To place an order or request a delivery quote, please email sales@melcotools.com.

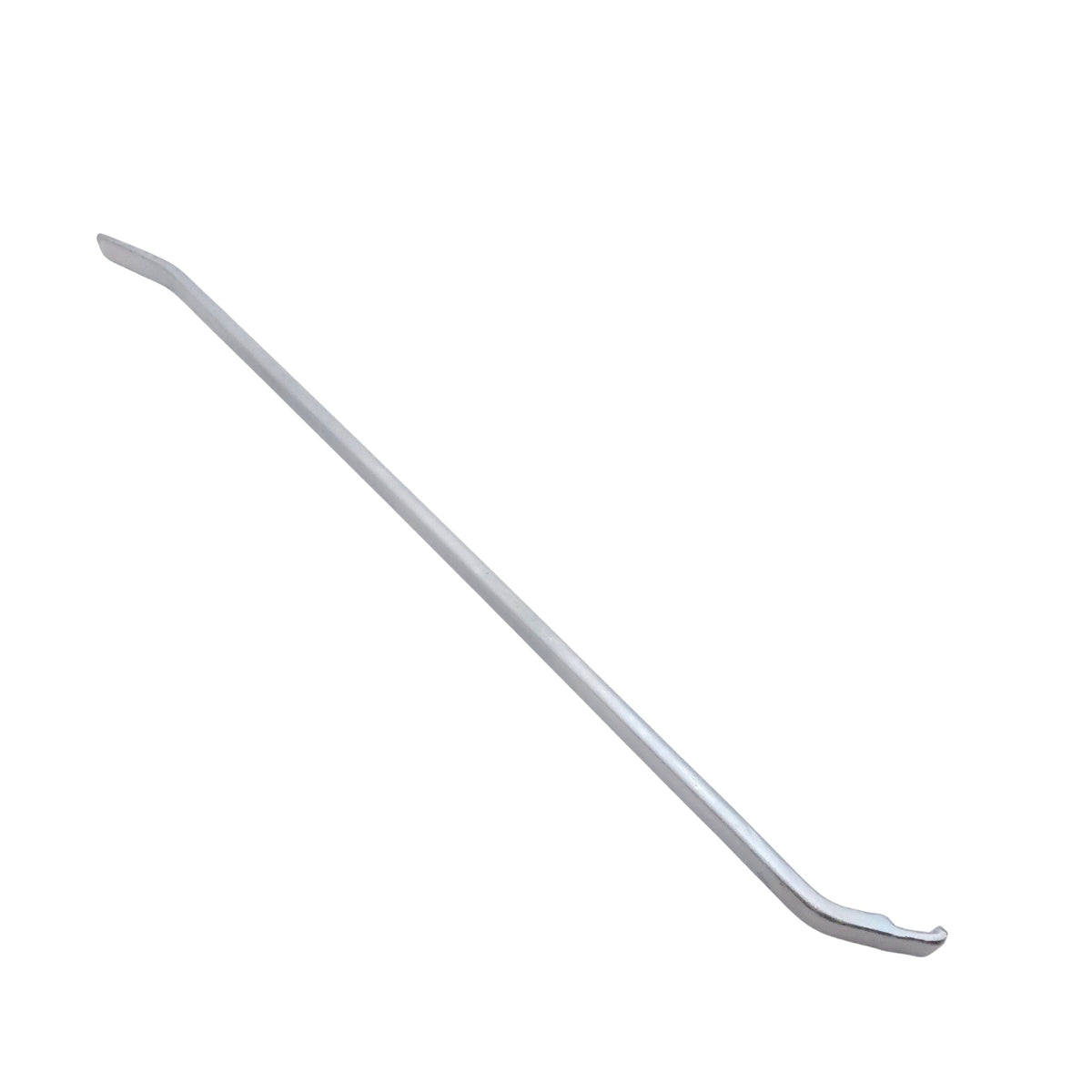

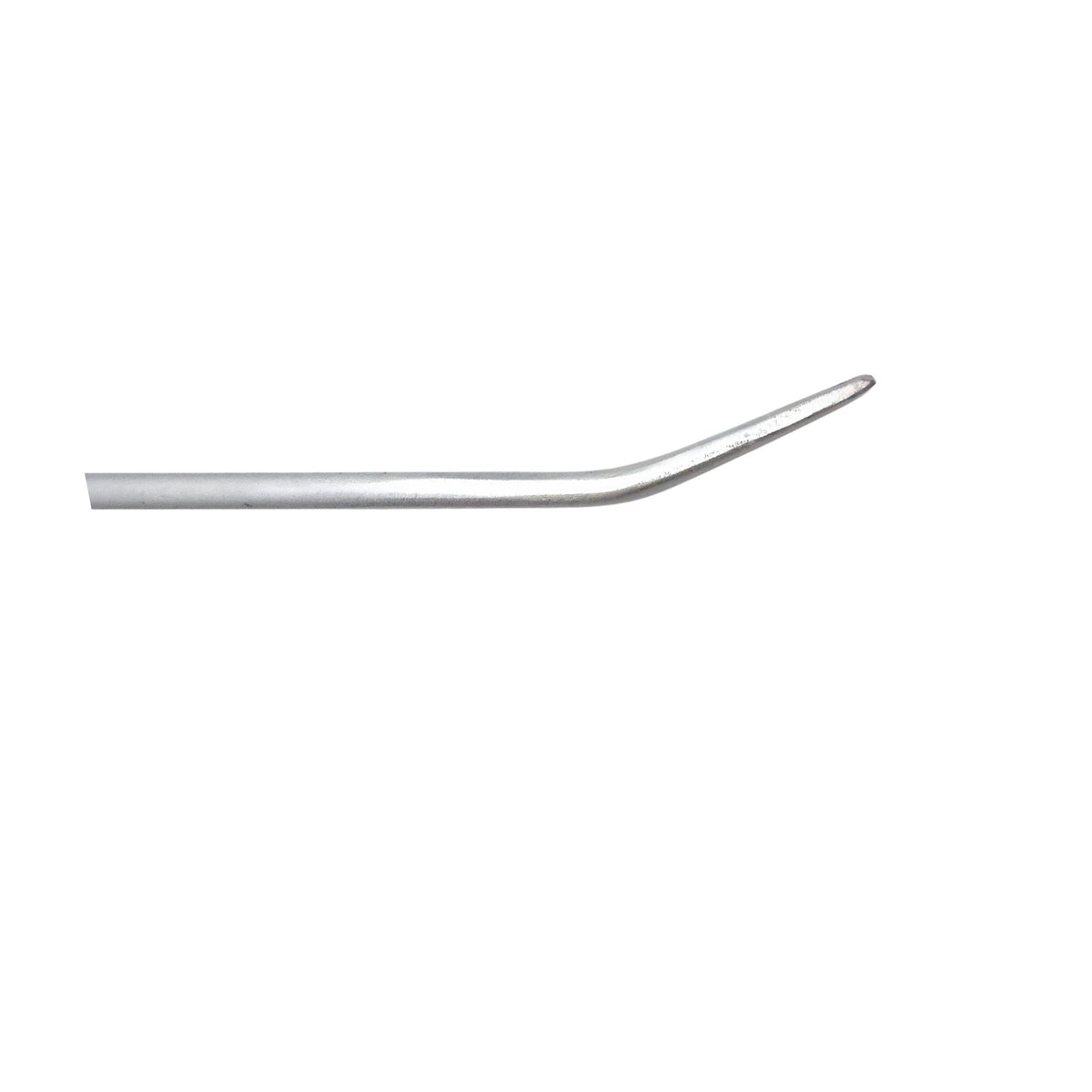

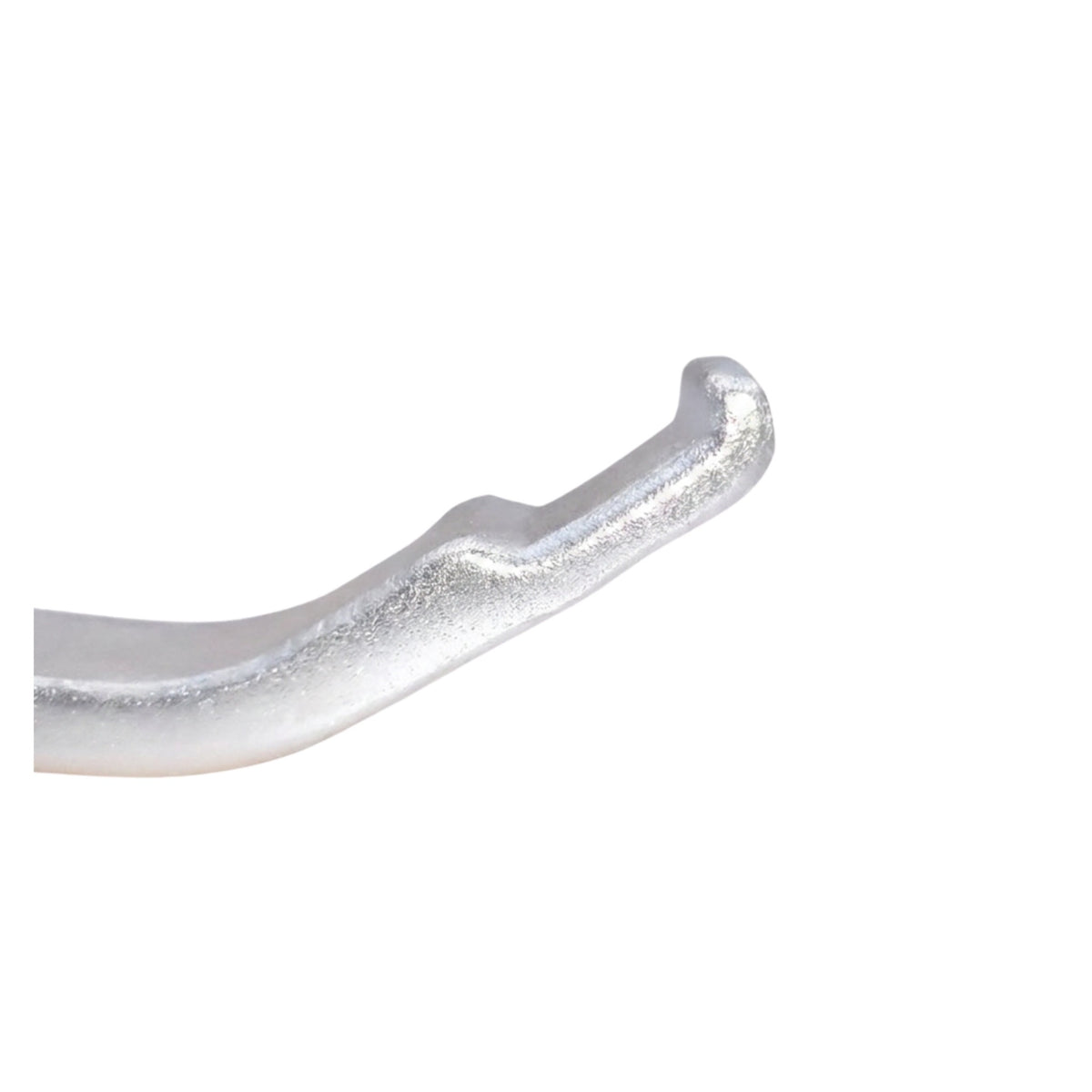

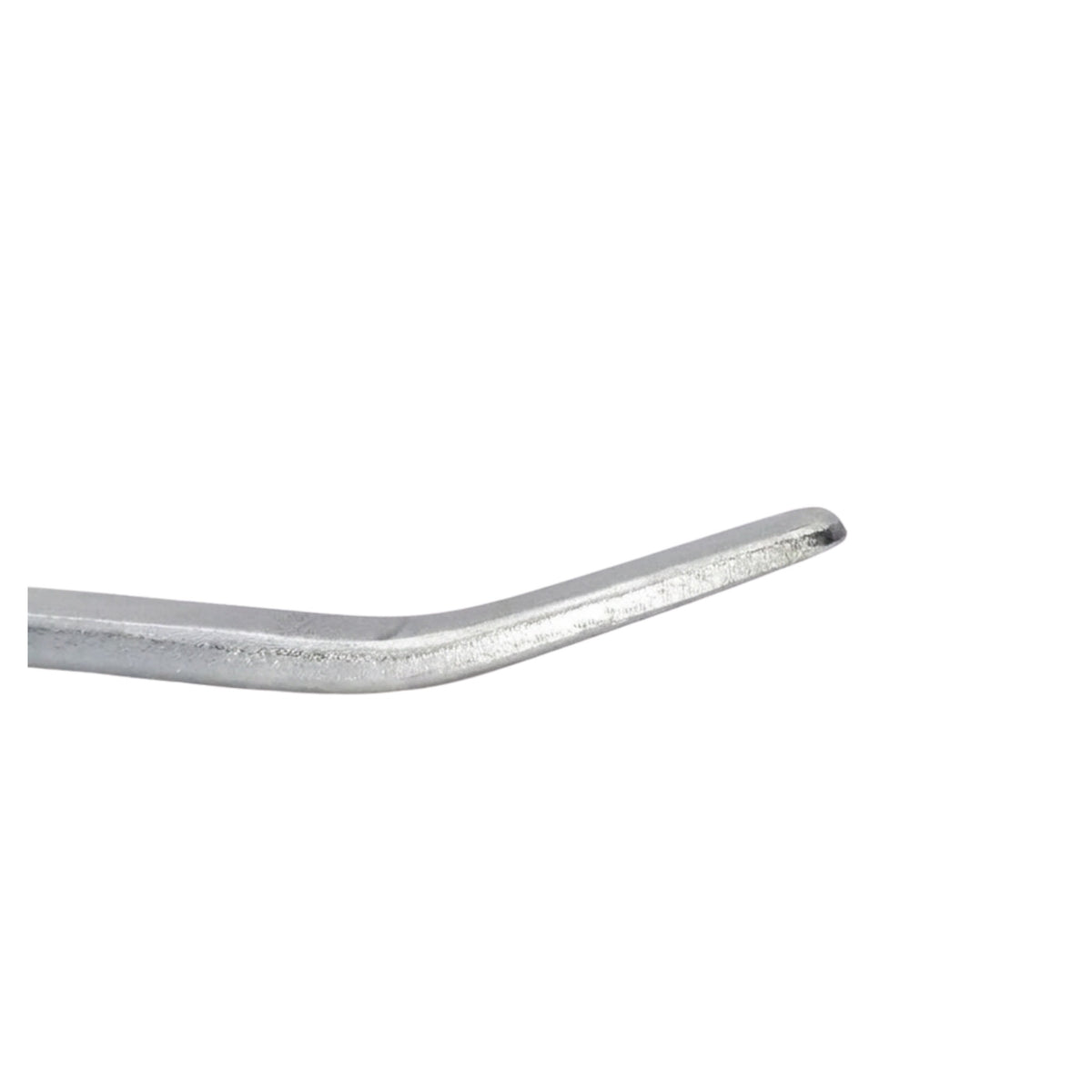

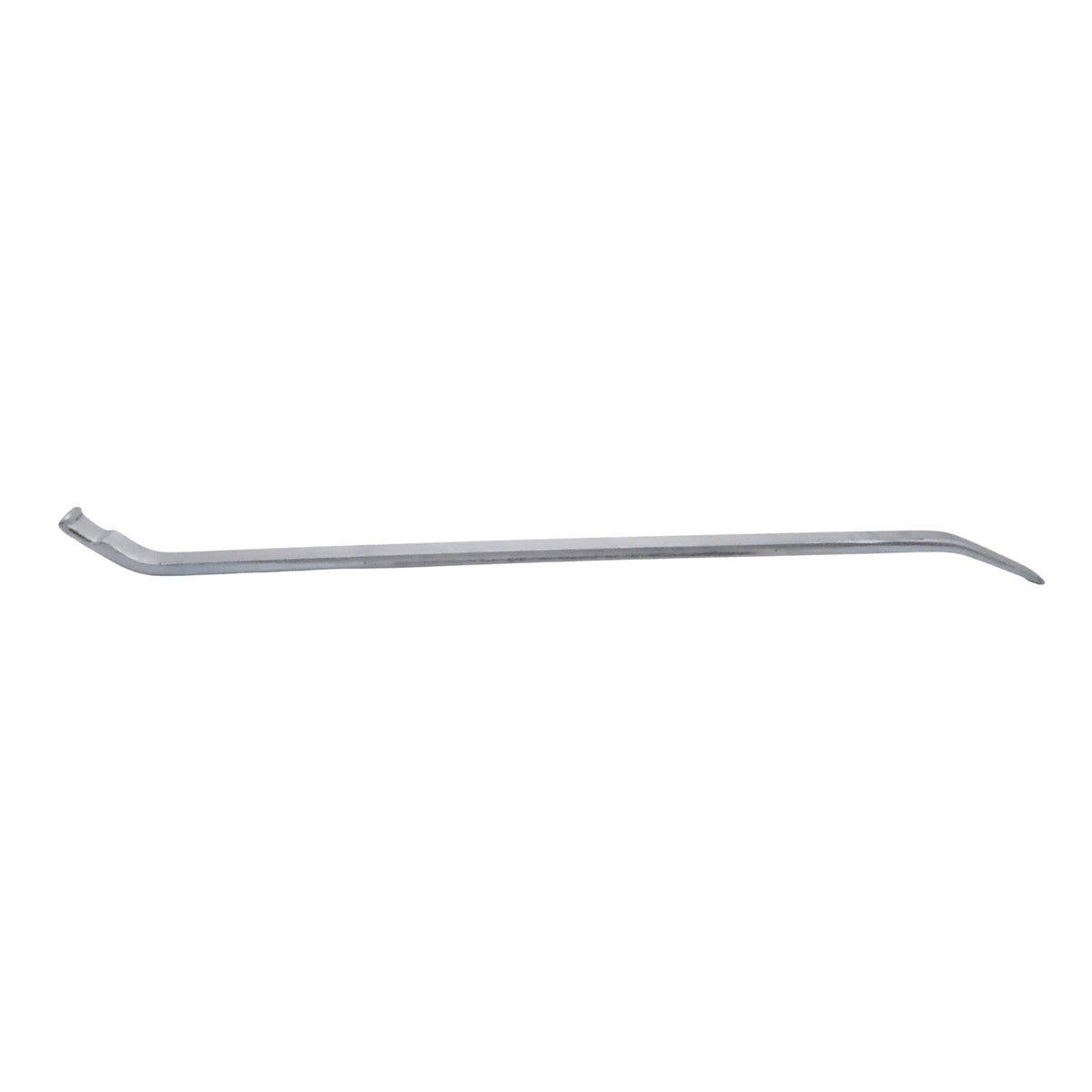

A general-purpose tubeless lever on the Halte / Michelin pattern, forged in Sheffield from rectangular spring steel bar with radius-edged corners so it will not dint a wheel. One end is a flat angled taper; the other carries two lips forming a channel to grip under the bead. It is a bit springier than a TTL/1 and does a very similar job. The genuine Halte lever costs perhaps twice as much - ours is the same pattern for less.

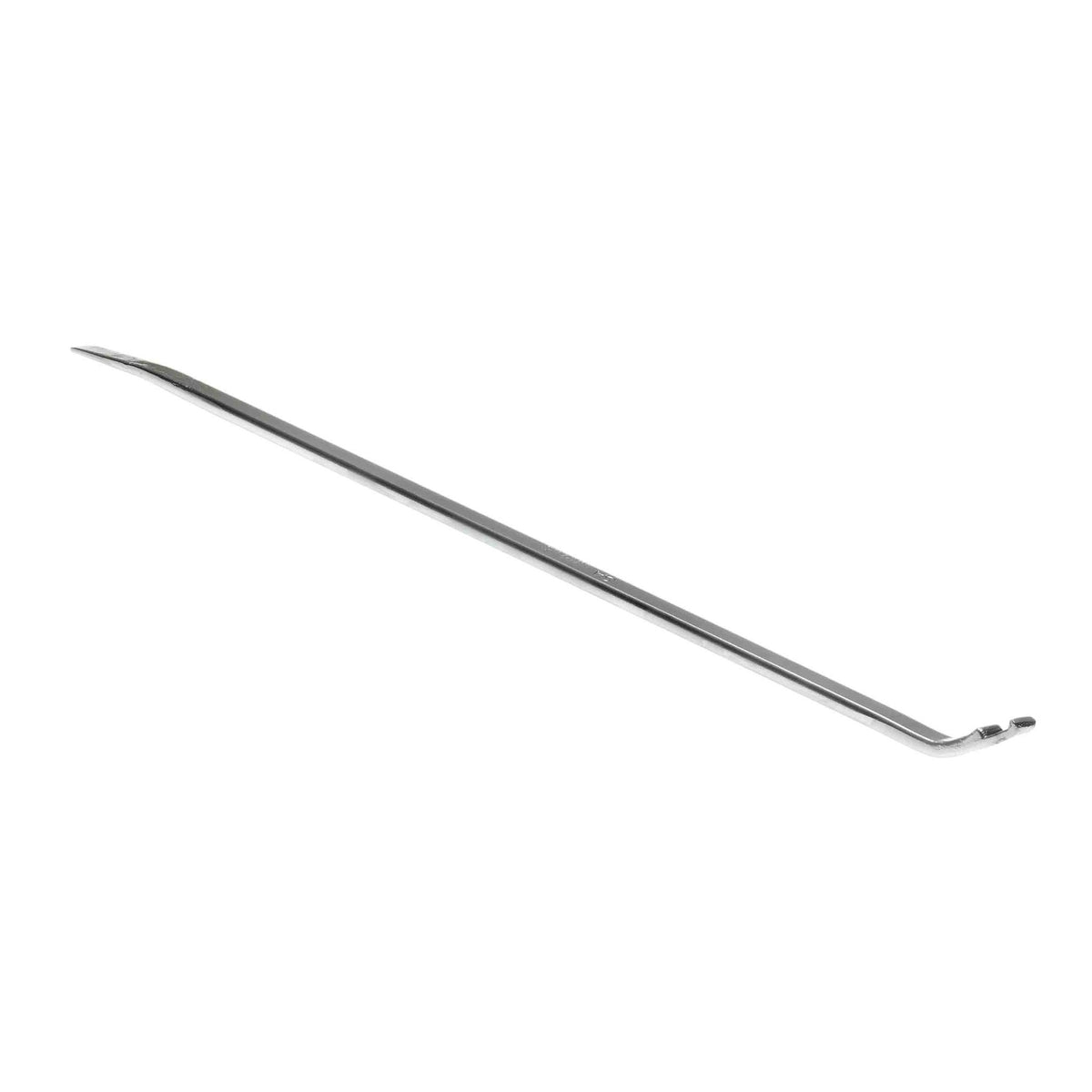

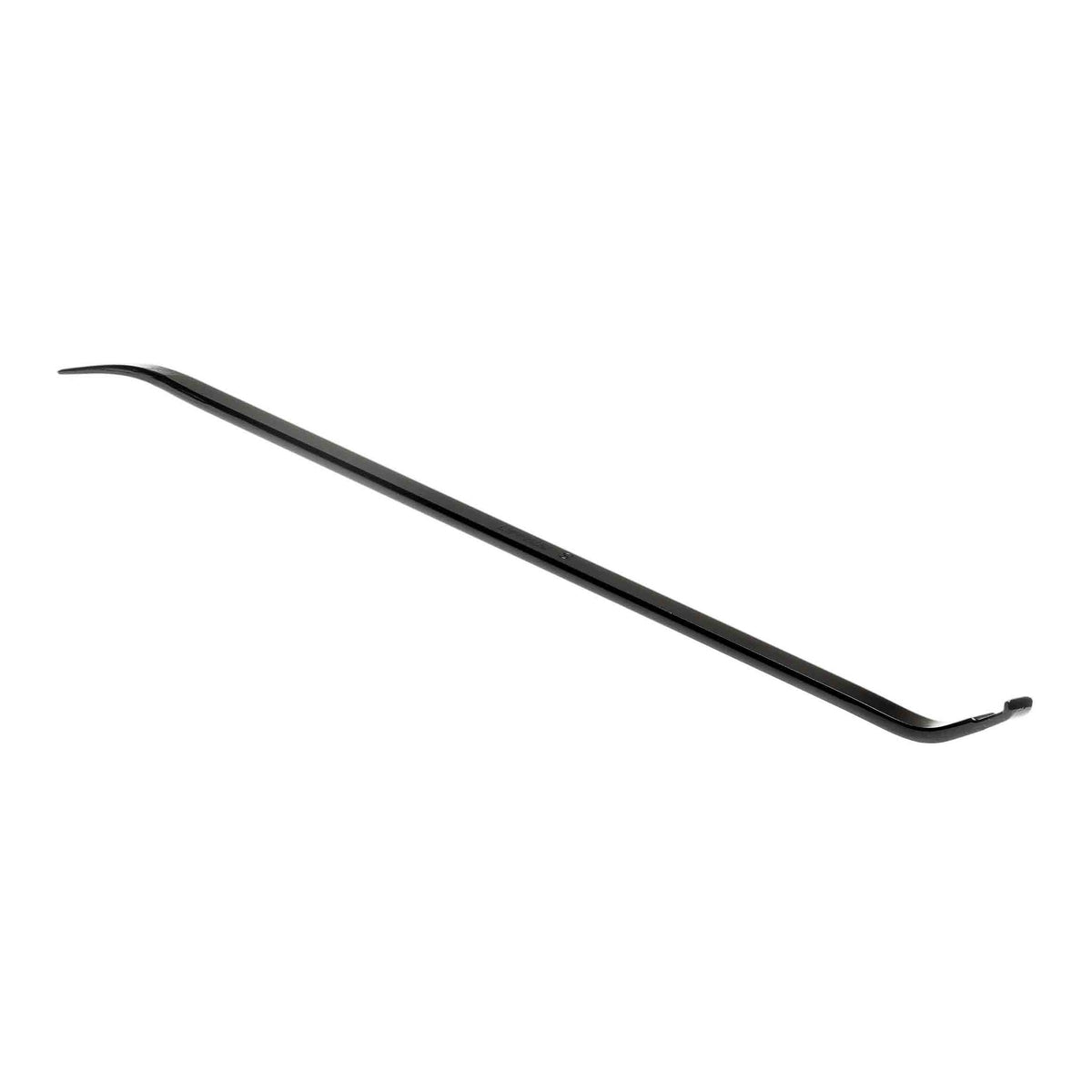

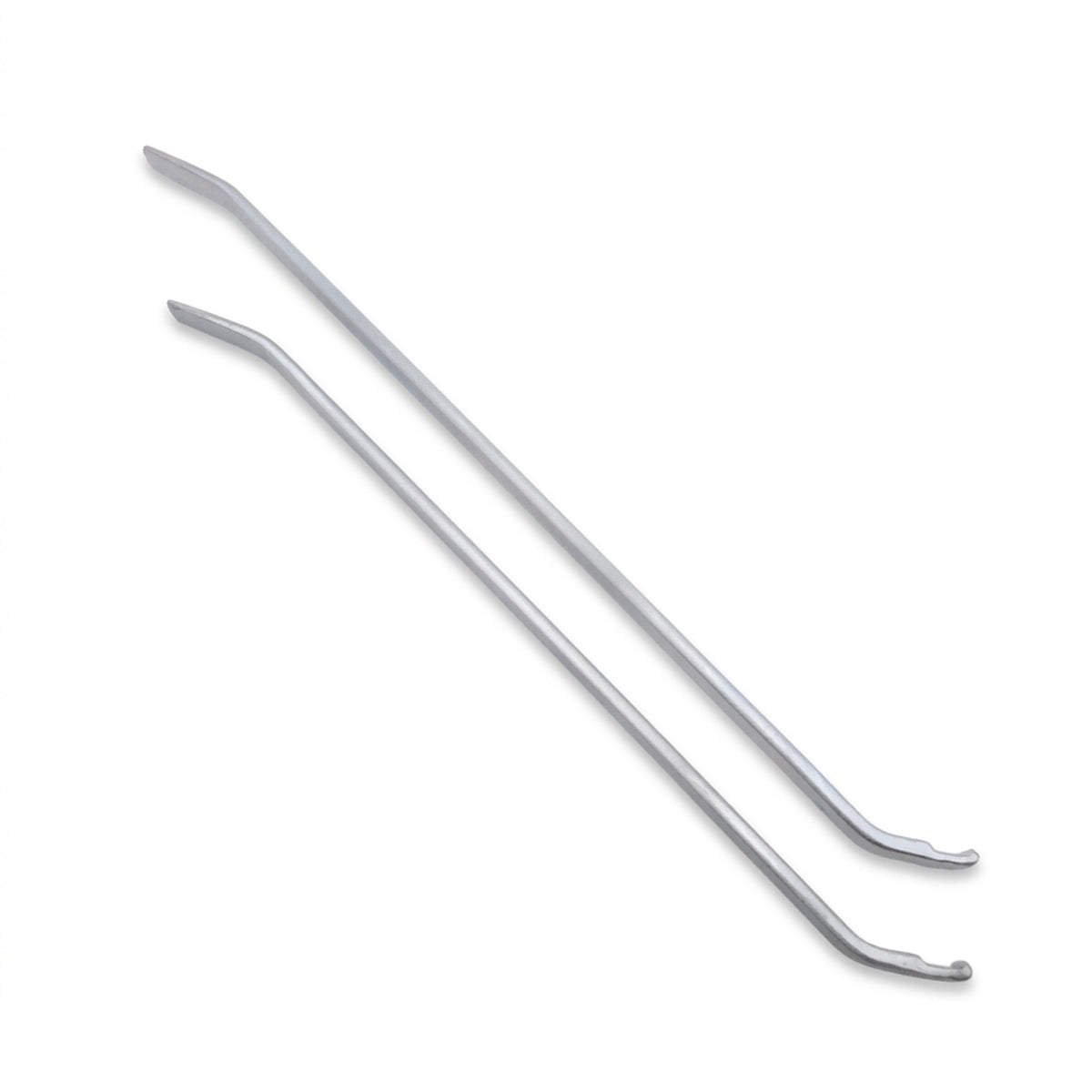

Available in two lengths: the standard 34in (870mm) and a shorter 30in (780mm) version - the "S" is for short - for tighter working room. Both share the same Halte pattern, springy rectangular section and wheel-friendly rounded edges, with the same lipped and tapered ends; choose your length above.
Pair it with a TTL/1 or TTL/5. Break and hold the bead, then run the TTL/4 round the rim, using the lipped end to grip under the bead.
Commercial tyre fitters across Europe where this is the leading pattern.
Effectively maintenance-free. Daily use keeps it in condition; if it is left standing, wipe it down with an oily cloth to keep rust off. Nothing needs sharpening. Check for any snags or sharp edges that could tear a tyre, and never weld anything to the lever - the heat alters the steel.
Key features
- Halte / Michelin pattern
- Two lengths: 34″ (870mm) and 30″ (780mm)
- Springy rectangular section
- Radius-edged – wheel-friendly
- Lipped bead-gripping end
- Forged spring steel, zinc plated
Applications
- Commercial
- general tubeless tyres
Specifications
| Spec | Standard (TTL/4) | Short (TTL/4/S) |
| Stock Code | 16004 | 16004S |
| Length | 870 mm (34″) | 780 mm (30″) |
| Weight | 1.86 kg | 1.43 kg |
| Barcode | 5013579001496 | 5013579001502 |
| Material | Spring steel, zinc plated | |
| HS Code | 8205598000 | |
| Country of Origin | United Kingdom | |
